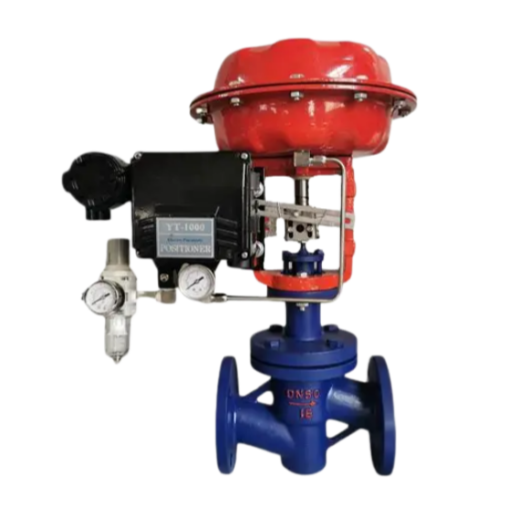

Pneumatic PTFE-Lined Single Seat Control Valve

Overview

ZJHPF pneumatic PTFE-lined single-seat control valve is a corrosion-resistant straight-through single-seat control valve. All wetted surfaces of the valve body and the internal trim components are lined with corrosion-resistant, aging-resistant F46 (FEP) by high-pressure injection molding, and PTFE bellows sealing is adopted. It is widely used for the control of strongly corrosive media such as acids and alkalis, as well as toxic and volatile gases and liquids.

Features

• Corrosion resistance: Resistant to almost all media, including concentrated nitric acid and aqua regia.
• Good sealing performance: Bellows and packing provide a double seal, ensuring no leakage.
• Low leakage: Thanks to the soft-seat plug and seat, the leakage rate is lower than the Class IV standard.
• High output force: Equipped with an HA actuator featuring high output force and compact structure. The product complies with GB/T4213-92.

Valve Body

Item	Value
Form	Straight-through single-seat spherical valve
Nominal Diameter	3/4″, 20, 25, 32, 40, 50, 65, 80, 100, 150 mm
Nominal Pressure	PN1.6, 2.5, 4.0, 6.4 MPa
Flange Standard	JB/T79.1 ~ 79.2-94, etc.
Material	ZG230-450 lined with F46
Working Temperature	-40 ~ 180 °C
Gland Form	Bolted
Packing	V-type PTFE packing

Main Technical Parameters

Nominal Diameter DN	20	25	32	40	50	65	80	100	150
Valve Seat Diameter (dn)	20	25	32	40	50	65	80	100	150
Rated Flow Coefficient Kv	5.0	8	12	20	32	50	70	100	240
Allowable Differential Pressure (MPa)	3.8	3.2	3.0	2.0	1.8	1.5	1.4	1.0	0.6
Nominal Pressure PN (MPa)	1.6, 2.5, 4.0, 6.4
Rated Stroke (mm)	16			25		40			60
Matching Actuator	ZHA/B-22		ZHA/B-23			ZHA/B-34			ZHA/B-45
Plug Form	Single-seat plunger PTFE-lined plug
Flow Characteristic	Quick-opening

Actuator Technical Parameters

Actuator Type	ZHA/B multi-spring diaphragm actuator
Actuator Model	ZHA/B-22	ZHA/B-23	ZHA/B-34	ZHA/B-45	ZHA/B-56
Effective Area (cm²)	350	350	560	900	1400
Stroke (mm)	10, 16	24	40	40, 60	100
Spring Range (kPa)	20-100 (standard), 20-60, 60-100, 40-200, 80-240
Diaphragm Material	Nitrile rubber with nylon fabric, EPDM rubber with nylon fabric
Supply Air Pressure	140-400 kPa
Air Connection	RC1/4″
Ambient Temperature	-30 ~ +70 °C
Optional Accessories	Positioner, air filter regulator, lock-up valve, limit switch, valve position transmitter, handwheel, etc.
Action Mode	Air-to-close (B) – valve opens on air failure (FO); air-to-open (K) – valve closes on air failure (FC)

Main Parts Materials

Part	Material
Valve body & bonnet	ZG230-450 lined with F46
Seat & plug	304 lined with F46
Stem	304 lined with F46
Guide bushing	304 lined with F46
Bellows	Stainless steel + F46

Performance Specifications

Item	Detail	Sub-detail	Without Positioner	With Positioner
Basic Error (%)			±5.0	±1.0
Hysteresis (%)			3.0	1.0
Dead Band (%)			3.0	0.4
Start/End Point Deviation (%)	Air-to-open	Start point	±2.5	±1.0
		End point	±5.0	±1.0
	Air-to-close	Start point	±5.0	±1.0
		End point	±2.5	±1.0
Rated Stroke Deviation (%)			≤2.5
Leakage (L/h)			0.01% × rated valve capacity
Rangeability			30:1

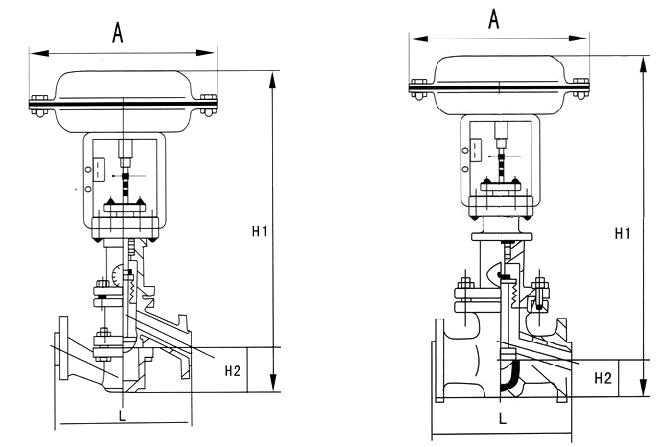

Installation & Connection Dimensions (Unit: mm)

Parameter	Type	20	25	32	40	50	65	80	100	125	150
L	PN16/25	181	184	200	222	254	276	298	352	410	451
	PN40	194	197	200	235	267	292	317	368	425	473
	PN64	206	210	210	251	286	311	337	394	440	508
H	PN16/25	52.5	57.5	75	75	85.5	92.5	100	110	142.5	158
	PN40	52.5	57.5	75	75	82.5	92.5	100	117.5	150	167.5
	PN64	65	65	85	85	90	102.5	107.5	125	172.5	195
H1		132	132	158	170	179	214	221	234	270	294
H2		298	298	298	298	298	380	380	380	510	510
H3		180	180	180	180	180	236	236	236	310	310
L1		289	289	289	289	289	347	347	347	476	476
A		282	282	282	282	282	360	360	360	470	470
D		220	220	220	220	220	270	270	270	320	320
