Electric Diaphragm Control Valve

Overview

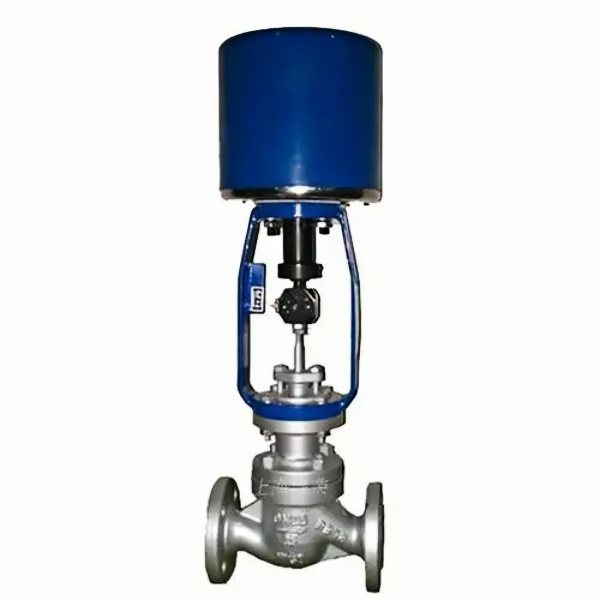

ZDLT Electric Diaphragm Control Valve consists of a diaphragm valve and a PS series or 3610 series linear-motion electric actuator. The actuator features an integrated electronic structure with a built-in servo amplifier. Once the control signal (4-20 mA DC or 1-5 VDC) and the power supply are connected, the valve is positioned directly to regulate process parameters such as pressure, flow rate, liquid level and temperature. It provides quick response, simple wiring, large flow capacity, compact size and high regulating accuracy with noticeably improved control accuracy and performance.

The diaphragm valve body has a smooth flow passage and the throttling element is an elastic diaphragm. As there is no stuffing box on the valve bonnet, the valve offers larger flow capacity than conventional control valves and is free from leakage; within the allowable differential pressure range it can be used as a shut-off valve. It is suitable for regulating high-viscosity fluids, suspended particles, fibrous media, toxic media and corrosive media.

Technical Parameters

Nominal Diameter DN (mm)		15	20	25	32	40	50	65	80	100	125	150	200	250
Allowable Differential Pressure (MPa)		1.0			0.89	1.0	1.0	1.0	1.0	1.0	0.6	0.38	0.15	0.057
Rated Flow Coefficient Kv		8	12	16	38	60	68	90	150	300	500	600	1200	2000
Nominal Pressure (MPa)		1.0
Stroke (mm)		10	16		25		40			60
Flow Characteristic		Approximately quick-opening (regulating type)
Flange Dimensions		Cast iron flanges to JB78-59, cast steel flanges to JB79-59
Matching Electric Actuator Model	PSL	PSL-201	PSL-202		PSL-204		PSL-208			PSL-312
	361L	361LSA-08 361LXA-08	361LSA-20		361LSB-30		361LSB-50			361LSC-65
	Explosion-proof type	361LXA-20			361LXB-30		361LXB-50

Actuator Specifications

Model		Rated Output Force (N)		Speed (mm/s)		Technical Parameters
PSL	361L	PSL	361L	PSL	361L	PSL	361L
201	361LSA-08 361LXA-08	1000	800 800	0.25	4.2 4.2	Power supply: AC220V 50Hz Input signal: DC4-20mA, DC1-5V (shielded cable for signal wire) Output signal: DC4-20mA Protection class: IP67 With handwheel	Power supply: AC220V 50Hz Input signal: DC4-20mA, DC1-5V (shielded cable for signal wire) Output signal: DC4-20mA Protection class: equivalent to IP55 Explosion-proof marking: ExdⅡBT4 With hand lever
202	361LSA-20 361LXA-20	2000	2000 2000	0.50	2.1 2.1
204	361LSB-30 361LXB-30	4500	3000 3000	0.50	3.5 3.5
208	361LSB-50 361LXB-50	8000	5000 5000	1.00	1.7 1.7
312	361LSC-65	12000	6500	0.60	2.8
325	361LSC-99	25000	10000	1.0	2.0

Performance Specifications

Item	Specified Value
Basic Error (%)	≤±3.5
Hysteresis (%)	≤2.5
Dead Band (%)	≤3.0
Start/End Point Deviation (%)	±2.5
Rated Stroke Deviation (%)	±2.5
Dead Time	≤1S
Allowable Leakage (L/h)	Rubber diaphragm: 0; PTFE diaphragm: 0.5% × rated flow capacity (water at allowable differential pressure)
Insulation Resistance	Not less than 20 MΩ
Damping Characteristics	Not more than 3.5 cycles

Body, Lining & Diaphragm Materials

Body Material	Lining Material	Diaphragm Material	Service Temperature	Applications
Cast iron HT200	None	Neoprene	0-65°C	Non-corrosive media, water and abrasives, slurry-type media
Cast iron HT200	PCTFE	Fluororubber	-15-150°C	Strong acids, strong alkalis, strong oxidants and common organic solvents; not suitable for slurry media
Cast stainless steel ZG1Cr18Ni9Ti	None	Fluororubber	-20-200°C	General acids, alkalis, organic solvents and similar media

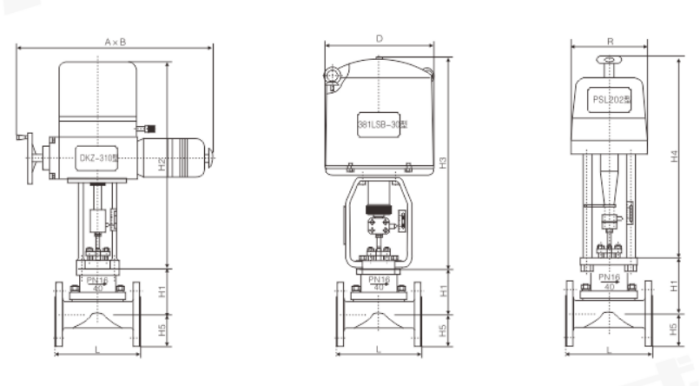

Overall Dimensions

Nominal Diameter DN (mm)		20	25	40	50	65	80	100	150	200	250
L (mm)		181	184	222	254	276	298	352	451	600	720
H1 (mm)		67	72	87	92	105	110	127	174	209	300
With PSL Actuator	H (mm)	738	750	765	767	845	857	875	1025	1045	1252
	D (mm)	176									225
	Weight (kg)	15	17	24	29	49	61	82	150	211	370
With 361L Actuator	H (mm)	501	513	650	652	770	782	800	1080	1125	1345
	D (mm)	225							310
	Weight (kg)	23	24	39	44	64	76	97	203	264	418
